KSNM Seed Drum - 20 x 20 cm

Introduction

The KSNM Seed Drum - 20 x 20 cm is a direct paddy seeder spare parts product listed by KSNM for agricultural use. It is supplied in the specific configuration shown in the product name.

Product Description

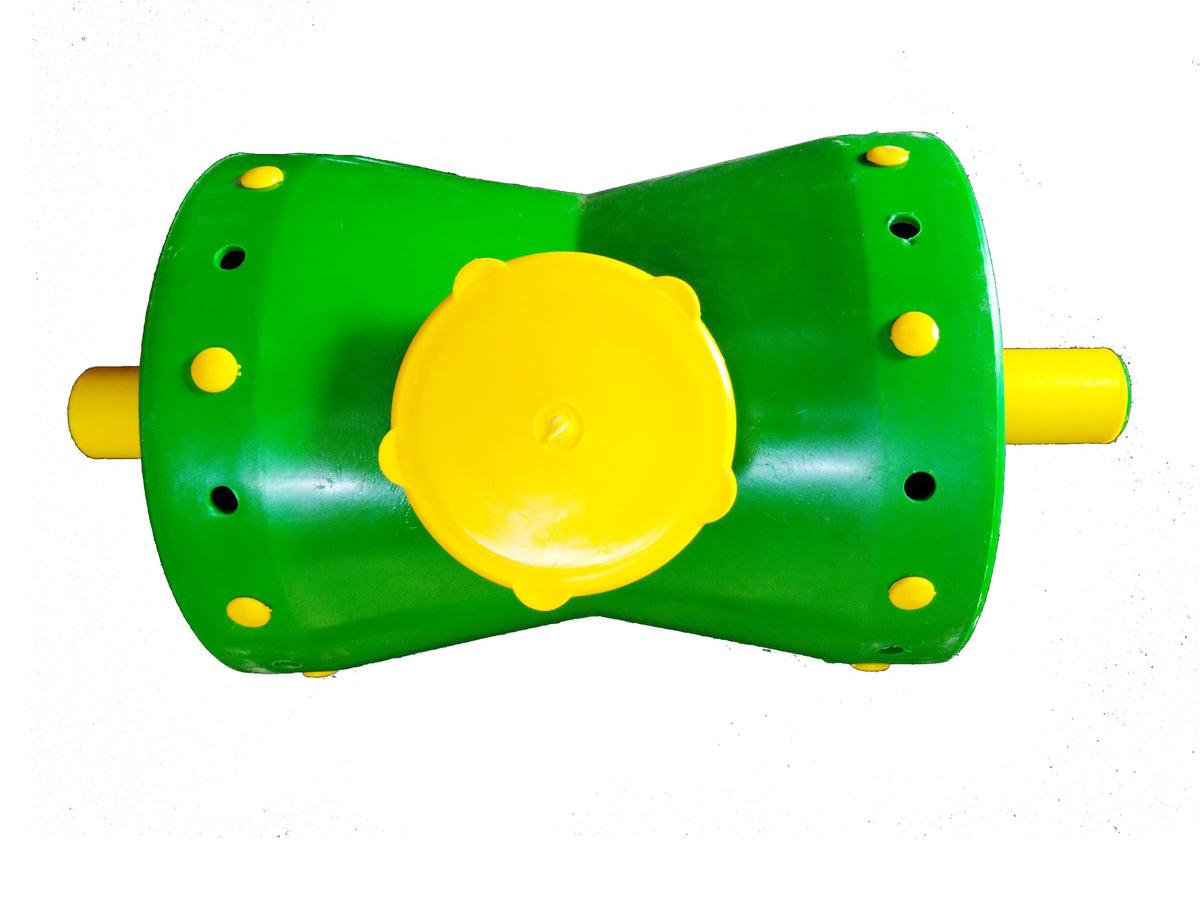

The seed drum is hyperboloid shaped with 200 mm diameter. There are 8 number of seeding metering holes of 9 mm hole diameter. Baffles are provided inside the seed drum between the seed holes to ensure the uniform seed rate in operation as well as to ensure hill dropping of the seeds. Each seed drum has two rows of planting, and four drums are assembled to form eight rows of planting at single stretch. Match the nominal product specification and the supplier product code (505) when selecting compatible equipment or replacement components.

Key Features

• Row to Row Spacing: 20 cm
• Shape of Seed Drum: Hyperboloid
• Net Weight: 0.6 kg

Technical Specifications

• Row to Row Spacing: 20 cm
• Shape of Seed Drum: Hyperboloid
• Net Weight: 0.6 kg
• Brand / Vendor: KSNM
• Supplier product code: 505

Applications

• Maintenance and replacement of compatible direct paddy seeder components
• Service of the supplier-specified row spacing or seeder configuration

Country of Origin: India
