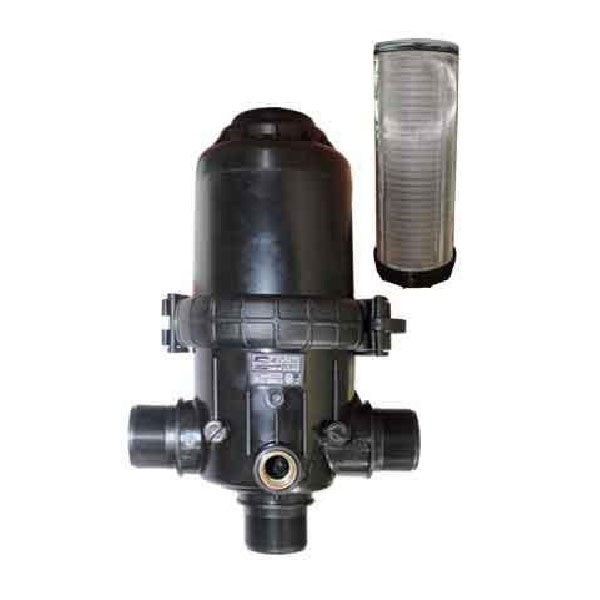

KSNM Screen Filter | 3 inch | 40 cubic meter | hour

Introduction

The KSNM Screen Filter | 3 inch | 40 cubic meter | hour is a screen, disk & hydrocyclone filters product listed by KSNM for agricultural use. It is supplied in the specific configuration shown in the product name.

Product Description

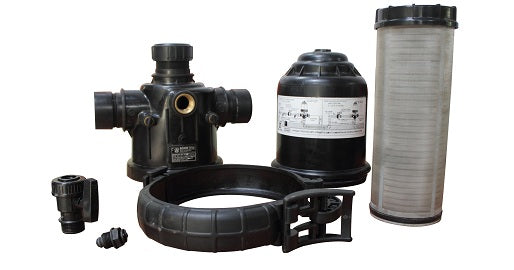

Large filtration area of mesh ensures high particle retention and allows longer interval between cleaning. Installation is possible in any position, both vertical and horizontal, inlet-outlet connections possible in both inline and angular orientation. Impurities retained on element surface can be flushed out with drain valve. Corrosion proof and durable polypropylene body construction. All plastic and metal parts are resistant to common agricultural chemicals. The Helix Ring placed at entry point of water, twirls the water creating turbulence and pushes it downwards across the surface of SS mesh. It keeps the fine sand suspended in the space between the filter body and element surface. Netlon mesh provides support to filter mesh preventing tearing while cleaning. Match the nominal product specification and the supplier product code (1028) when selecting compatible equipment or replacement components.

Key Features

• Diameter: 3 inch
• Flow Rate: 40 cubic meter / hour
• Filter Mesh Size: 120 micron
• Net Weight: 5.5 Kg
• Supplier product page includes additional product-view images

Technical Specifications

• Diameter: 3 inch
• Flow Rate: 40 cubic meter / hour
• Filter Mesh Size: 120 micron
• Net Weight: 5.5 Kg
• Brand / Vendor: KSNM
• Supplier product code: 1028

Applications

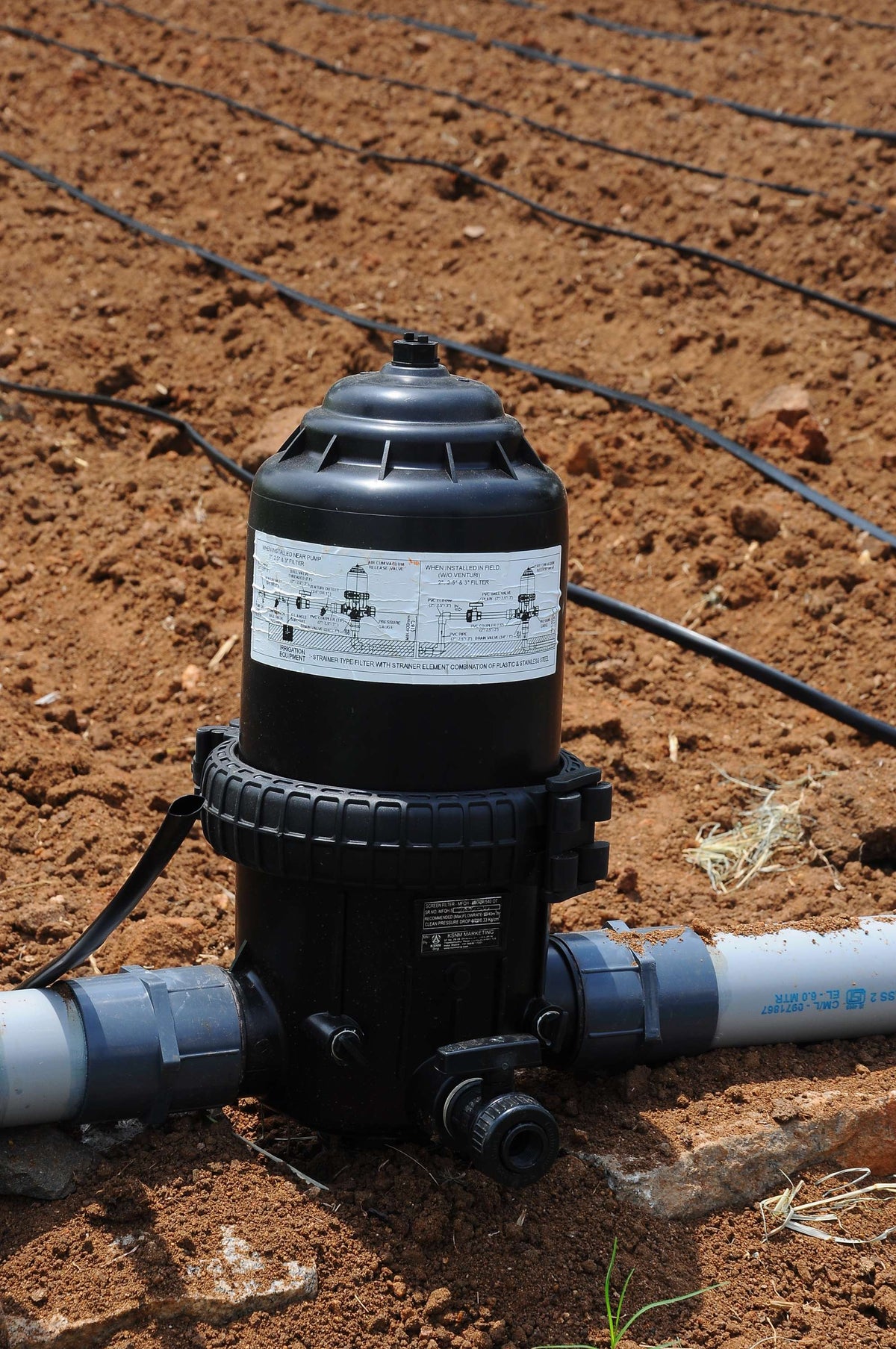

• Filtering irrigation water upstream of drip emitters
• Reducing particulate ingress into suitable micro-irrigation systems

Country of Origin: India
