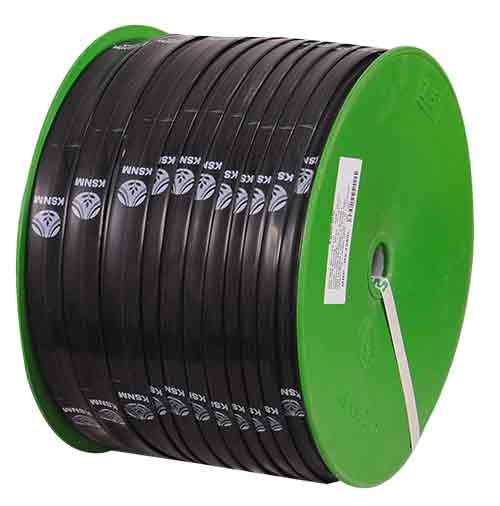

KSNM Mini Rain Hose - 250 | 20 mm | 400 Meter

Introduction

The KSNM Mini Rain Hose - 250 | 20 mm | 400 Meter is a 20 mm mini rain hose & fittings product listed by KSNM for agricultural use. It is supplied in the specific configuration shown in the product name.

Product Description

Mini Rain Hose is a flexible hose with a pattern of drip holes. These drip holes are made with nano punching technology to ensure a uniform flow of water. Rain Hose is suitable for closely spaced crops like onions, vegetable crops, leafy vegetables, groundnuts, etc. 1. Mini Rain Hose is 250-micron wall thickness and 20 mm diameter. 2. Spraying width is 1.5 meters on either side and in total 3 meters. 3. Laying length is 15 meters. 4. Mini rain hose is mainly meant for small fields, say 10 cents. 5. For bigger fields, RAIN HOSE 40 mm is suitable. Match the nominal product specification and the supplier product code (1200) when selecting compatible equipment or replacement components.

Key Features

• Wall Thickness: 250 Microns
• Diameter: 20 mm
• Width of Spray: 3 Meter (1.5 Meter on either side)
• Water Discharge: 75 liter per hour per meter of Mini Rain Hose length @ 0.8 Kg/cm2 pressure
• Laying Length: 15 Meter

Technical Specifications

• Wall Thickness: 250 Microns
• Diameter: 20 mm
• Width of Spray: 3 Meter (1.5 Meter on either side)
• Water Discharge: 75 liter per hour per meter of Mini Rain Hose length @ 0.8 Kg/cm2 pressure
• Laying Length: 15 Meter
• Operating Pressure: 0.8 Kg/cm2
• Expected Life: 4 Years
• Suitable Crop: Onion, Groundnut, Vegetables, Greens and Other Closely Spaced Crops
• Net Weight: 6.250 Kg
• Gross Weight: 6.500 Kg
• Roll Length: 400 Meter
• Brand / Vendor: KSNM
• Supplier product code: 1200

Supplier kit contents / component details (as published):

• CODE | PRODUCT NAME | SPRAYING WIDTH | LAYING LENGTH
• 1200 | Mini Rain Hose - 250 / 20 mm / 400 Meter | 4 Meter | 15 Meter
• 1173 | Rain Hose - 350 / 32 mm / 100 Meter | 6 Meter | 25-40 Meter
• 1065 | Rain Hose - 350 / 40 mm / 100 Meter | 6 Meter | 30-50 Meter
• 1175 | Rain Hose - 350 / 50 mm / 100 Meter | 6 Meter | 75-100 Meter
• 2277 | Rain Hose - 350 / 63 mm / 100 Meter | 6 Meter | 100 Meter

Applications

• Compatible agricultural irrigation system installation
• Maintenance and servicing of specified field equipment

Country of Origin: India
