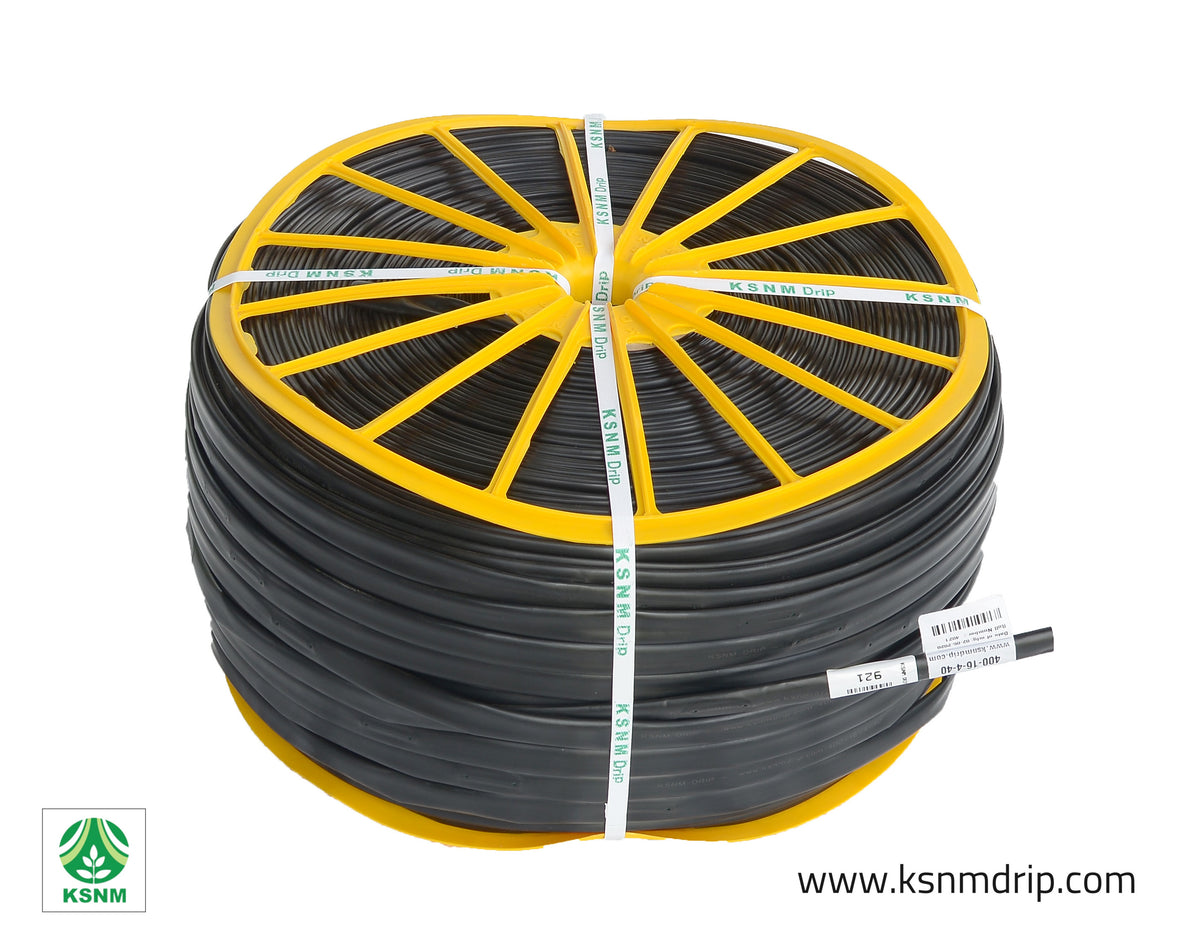

KSNM Flat Inline | 800-16-4-40 | 500 Meter
Couldn't load pickup availability
Introduction
KSNM Flat Inline is a drip-irrigation lateral for applying water along the crop row. The connection arrangement is 800-16-4-40 / 500 Meter. Nominal diameter is 16 mm.
Product Description
FLAT INLINE is flexible drip lateral tube. Thickness is 800 Micron / 0.8 mm.
The connection arrangement is 800-16-4-40 / 500 Meter. Nominal diameter is 16 mm. The roll length is 500 meter.
The water discharge rating is 4 LPH. Operating pressure is 2 bar. Outlet spacing is 40 mm.
Gross weight is 16.5 kg.
The line carries water along the planted strip and releases it through the outlet arrangement specified for this version. Diameter, outlet spacing and roll length describe different parts of the layout: the roll length is not automatically the permissible length of one installed run. Pressure and row length must remain within the product's stated limits.
A row layout is planned around the crop spacing and the water outlet arrangement in the line. Supply connections and line ends are fitted as separate parts of the installation. This makes the lateral a working distribution component: it carries water through the row, while the overall field layout determines how many runs and connections are required.
Key Features
- Wall Thickness: 800 micron.
- Drip Hole Spacing: 40 mm.
- Water Discharge: 4 LPH.
- Operating Pressure: 2 bar.
- The connection arrangement is 800-16-4-40 / 500 Meter.
- Nominal diameter is 16 mm.
- Wall thickness is 800 micron.
- The roll length is 500 meter.
- The water discharge rating is 4 LPH.
Technical Specifications
Product typeDrip-irrigation lateralWall Thickness800 micronDiameter16 mmDrip Hole Spacing40 mmWater Discharge4 LPHOperating Pressure2 barGross Weight16.5 kgRoll Length500 meterBrandKSNMModel1408Connection / size configuration800-16-4-40 / 500 MeterApplications
- Row-crop irrigation
- Water application along suitable planting beds
- Installing the specified drip-lateral configuration
Country of Origin
India
