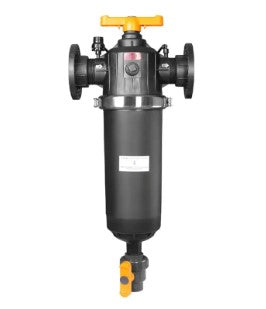

2.5 Inch Semi-Automatic Disc Filter – Primary & Secondary Irrigation Filtration

Regular price ₹7,400
Regular price MRP ₹9,200 Sale price ₹7,400
Sale Sold out
Inclusive of all Taxes.

Introduction

2.5 Inch Semi-Automatic Disc Filter – Primary & Secondary Irrigation Filtration is an irrigation disc filter for removing suitable suspended material from the water flow. The vendor is Agri Route. The connection Size is 2.5 inch.

Product Description

The vendor is Agri Route. The connection Size is 2.5 inch. The filtration method is Disc / depth filtration.

The construction is Chemically bonded polymer. Cleaning is carried out by 90-degree handle rotation without dismantling the filter. The cleaning indicator is Red pop-up pressure indicator.

The cleaning Trigger Listed is 0.6 kg/cm² (8.5 psi) pressure differential or raised clogging indicator. The primary Application is Surface-water and irrigation filtration. The power arrangement is non-powered / hydraulic filtration unit.

The cleaning Trigger is 0.6 kg/cm2 (8.5 psi) pressure differential or raised clogging indicator.

The water passes through the disc-filter element before continuing into the irrigation system. The filtering stage helps manage material that could otherwise reach downstream components, while the body and cleaning arrangement define how the unit is maintained. Connection size and element specification describe this model; they do not by themselves establish water-potability treatment.

The filter is normally considered together with the equipment it protects downstream. Keeping the filtering element accessible makes routine inspection and cleaning part of the water-system workflow. This is especially relevant when the same supply feeds multiple irrigation outlets, because the filtration stage sits ahead of those separate points of application.

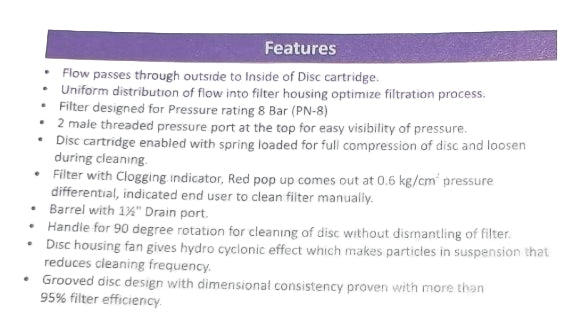

Key Features

  • Stacked-disc element provides depth filtration for fine particles and organic matter.
  • Red pop-up indicator provides a visual signal when cleaning is required.
  • 90-degree handle action enables cleaning without dismantling the disc assembly.
  • The vendor is Agri Route.
  • The connection Size is 2.5 inch.
  • The filtration method is Disc / depth filtration.
  • The construction is Chemically bonded polymer.
  • Cleaning is carried out by 90-degree handle rotation without dismantling the filter.
  • The cleaning indicator is Red pop-up pressure indicator.

Technical Specifications

VendorAgri RouteProduct TypeSemi-automatic disc filterConnection Size2.5 inchFiltration MethodDisc / depth filtrationConstructionChemically bonded polymerCleaning Mechanism90-degree handle rotation without dismantling the filterClogging IndicatorRed pop-up pressure indicatorCleaning Trigger Listed0.6 kg/cm² (8.5 psi) pressure differential or raised clogging indicatorPrimary ApplicationSurface-water and irrigation filtrationCleaning Trigger0.6 kg/cm2 (8.5 psi) pressure differential or raised clogging indicator

Applications

  • Filtration in suitable irrigation systems
  • Protecting compatible downstream irrigation components
  • Primary or secondary filtration where specified for the model

Country of Origin

India

2.5-inch semi-automatic disc filter with clogging indicator and 90° cleaning handle for primary and secondary irrigation-water filtration.
