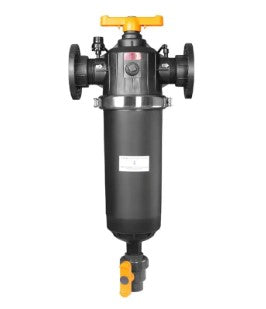

2.5 Inch Semi Automatic Disc Filter for Primary & Secondary Filtration

₹7,400
₹9,200 ₹7,400
Sale Sold out
Tax included. Shipping calculated at checkout.

2.5 Inch Semi Automatic Disc Filter for Primary & Secondary filtration

Description

The Semi-Automatic Disc Filter offers reliable filtration with minimal maintenance. Made from a durable, chemically bonded polymer, it ensures long-lasting performance. The user-friendly design allows for easy installation and efficient cleaning with a simple 90-degree handle rotation, keeping the irrigation system clog-free.

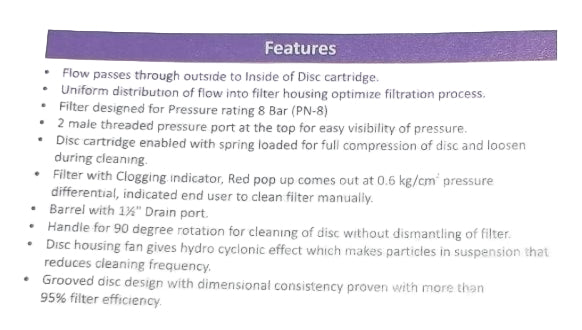

Features

 :
  • Durable Construction: Built with a chemically bonded polymer for long­ lasting use.
  • Hydro Cyclonic Effect: Disc housing fan keeps particles in suspension, reducing cleaning frequency.
  • Clogging Indicator: Red pop-up button alerts when cleaning is needed.
  • Efficient Cleaning: 90-degree handle rotation enables cleaning without dismantling the filter

    Applications

     :
    • Pre-filtration in desalination plants
    • Surface water filtration for irrigation
    • Filtration in hydroponics systems
    • Clarification of wastewater
    •  Tertiary treatment for high-quality effluent
    Cleaning Instructions :
    • Cleaning of the filter must be done when pressure differential across the disc reaches 0.6 kg/cm2 (8.5psi) or when the clogging indicator red button pops up.
    • Cleaning the semi-automatic filter must be done while the filter is under pressure
    • Gradually open the flushing valve below the filter
    • To start cleaning mode of filter, turn the handle (top of the filter) 900 degree in clockwise direction.
    • Cleaning operation starts, system pressure might increase during cleaning operation.
    • When cleaning operation done, first filter handle direction should be at filtration mode. And then flushing valve gradually close.
    • In case the the filter is still clogged (pressure indicator button is up). Repeat the above steps for effective disc cleaning.
