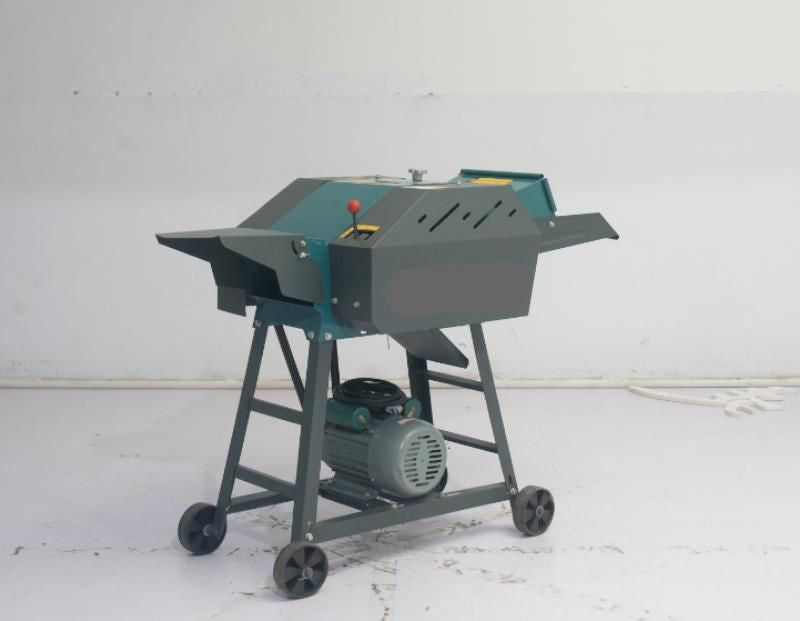

Sprayman Chaff Cutter L – 3 HP Motor / 7.5 HP Engine Options

Regular price ₹25,000
Regular price MRP ₹29,999 Sale price ₹25,000
Sale Sold out
Inclusive of all Taxes.
Material

Introduction

Sprayman Chaff Cutter L – 3 HP Motor / 7.5 HP Engine Options is a fodder-cutting machine for preparing suitable green or dry feed material. The power arrangement is 3 HP single-phase electric motor / 7.5 HP engine variant. The cutting capacity is 400–1200 kg/hour.

Product Description

The power arrangement is 3 HP single-phase electric motor / 7.5 HP engine variant. The cutting capacity is 400–1200 kg/hour. The power Variants is 3 HP Motor / 7.5 HP Engine.

The motor Type is 3 HP single-phase copper winding (motor variant). Motor speed is 2800 RPM (motor variant). The voltage / Frequency is 220 V / 50 Hz (motor variant).

The shaft Diameter is 24 mm. The pulley Diameter is 80 mm. The number of Blades is 5.

The final Cut Size is 10–35 mm. The gears is 3 positions — F / N / S.

The feed material is introduced into the cutting path and reduced into shorter pieces for handling and livestock-feed preparation. Blade arrangement, power version and cut-size controls define the particular configuration. The feeding rate should remain compatible with the machine, with hands and loose items kept away from the feed and cutting mechanisms.

Fodder preparation begins with the material accepted by the machine and proceeds through the cutting area to collection. Cutting turns that material into shorter pieces for subsequent handling and feeding preparation. The stated power or hand-operated arrangement defines how the cutter is driven, while the feed opening and cutting system remain the parts that act directly on the fodder.

Available configuration choices are 3 Hp Motor; 7.5 Hp Engine. Each choice describes a separate version of this product.

Key Features

  • Five-blade cutting system supports repeated green and dry fodder preparation.
  • Three-position F/N/S gear arrangement provides operating control during fodder processing.
  • The power arrangement is 3 HP single-phase electric motor / 7.5 HP engine variant.
  • The cutting capacity is 400–1200 kg/hour.
  • The power Variants is 3 HP Motor / 7.5 HP Engine.
  • The motor Type is 3 HP single-phase copper winding (motor variant).
  • Motor speed is 2800 RPM (motor variant).
  • The voltage / Frequency is 220 V / 50 Hz (motor variant).
  • Fodder size reduction: cuts suitable feed material into shorter pieces through the blade system.

Technical Specifications

BrandSpraymanProduct TypePowered chaff cutter / fodder cutterPower Variants3 HP Motor / 7.5 HP EngineMotor Type3 HP single-phase copper winding (motor variant)Motor Speed2800 RPM (motor variant)Voltage / Frequency220 V / 50 Hz (motor variant)Shaft Diameter24 mmPulley Diameter80 mmCutting capacity400–1200 kg/hourNumber of Blades5Final Cut Size10–35 mmGears3 positions — F / N / SWeightApprox. 42 kg

Applications

  • Preparing green fodder
  • Cutting suitable dry fodder
  • Livestock-feed preparation on farms

Country of Origin

India

Buy Chaff Cutter L online in India to cut green and dry fodder for cattle feeding. Saves time and increases fodder digestibility.
