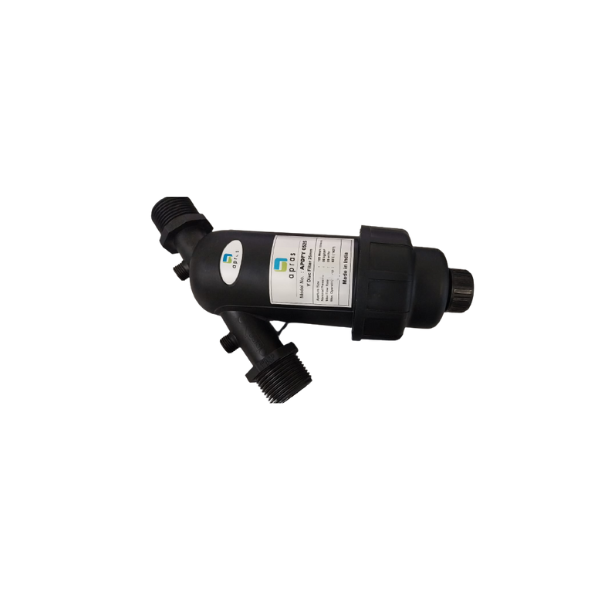

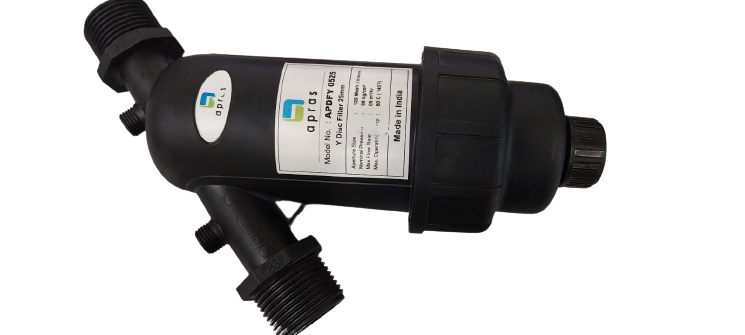

Y-Shape Irrigation Filter – 130 Micron, 8 kg/cm² Nominal Pressure

Regular price ₹1,000
Regular price MRP ₹1,300 Sale price ₹1,000
Sale Sold out
Inclusive of all Taxes.
Pack

Introduction

Y-Shape Irrigation Filter – 130 Micron, 8 kg/cm² Nominal Pressure is an irrigation screen filter for separating suitable suspended particles from flowing water. Flow capacity is 5–20 m³/hr depending on configuration. The vendor is Agri-Route.

Product Description

Is a compact plastic filtration unit for removing suspended particles before irrigation water reaches downstream lines and emitters.

Flow capacity is 5–20 m³/hr depending on configuration. The vendor is Agri-Route. The aperture / Mesh is 120 mesh.

The degree of Filtration is 130 micron. The nominal Pressure is 8 kg/cm². The inlet / Outlet Sizes Listed is 3/4 inch, 1 inch, 1 1/4 inch, 1 1/2 inch and 2 inch.

The types Listed is Ultra and Super. The construction is Non-toxic, UV-stabilized, chemical-resistant engineering plastic. The power arrangement is non-powered filtration unit.

The inlet / Outlet Sizes is 3/4 inch, 1 inch, 1 1/4 inch, 1 1/2 inch and 2 inch. The types is Ultra and Super.

The screen forms a physical filtering stage inside the housing while water continues to the downstream line. Routine cleaning maintains the available screen area and is carried out through the cleaning arrangement provided with the filter. The connection size, screen specification and operating limits must suit the irrigation layout.

The screen element should be treated as the working part of the filter, with the housing providing its connection to the pipeline. Cleaning and inspection keep that stage accessible within the overall irrigation layout. This makes the filter a maintenance point in its own right, separate from the sprinklers, emitters or other equipment further along the line.

Key Features

  • Flow capacity is 5–20 m³/hr depending on configuration.
  • The vendor is Agri-Route.
  • The aperture / Mesh is 120 mesh.
  • The degree of Filtration is 130 micron.
  • The nominal Pressure is 8 kg/cm².
  • The inlet / Outlet Sizes Listed is 3/4 inch, 1 inch, 1 1/4 inch, 1 1/2 inch and 2 inch.
  • Screen-based filtration: separates suitable suspended material at the filter element.

Technical Specifications

VendorAgri-RouteProduct TypeY-shape irrigation filterAperture / Mesh120 meshDegree of Filtration130 micronNominal Pressure8 kg/cm²Inlet / Outlet Sizes Listed3/4 inch, 1 inch, 1 1/4 inch, 1 1/2 inch and 2 inchTypes ListedUltra and SuperFlow capacity5–20 m³/hr depending on configurationConstructionNon-toxic, UV-stabilized, chemical-resistant engineering plasticInlet / Outlet Sizes3/4 inch, 1 inch, 1 1/4 inch, 1 1/2 inch and 2 inchTypesUltra and Super

Applications

  • Irrigation-water filtration
  • Screening before suitable downstream equipment
  • Maintaining a compatible farm water circuit

Country of Origin

India

Y-shape irrigation filter with 130-micron filtration, 8 kg/cm² nominal pressure and multiple inlet/outlet sizes for drip irrigation systems.
