KSNM Mini Rain Hose Kit | 20 mm - 1/4 acre

Introduction

The KSNM Mini Rain Hose Kit | 20 mm - 1/4 acre is a spray irrigation kits product listed by KSNM for agricultural use. It is supplied in the specific configuration shown in the product name.

Product Description

The Mini Spray Irrigation Kit uses a MINI RAIN HOSE. This is a "Do It Yourself Kit". Mini Rain Hose is a flexible hose with a pattern of drip holes. These drip holes are made with nano punching technology to ensure a uniform flow of water. Rain Hose is suitable for closely spaced crops like onions, vegetable crops, leafy vegetables, groundnuts, etc. Laying Length - 15 Meters. Discharge - 75 liters per hour per meter length @ 0.8 Kg/cm2. Valves are provided to control the flow of water through Mini Rain Hose. No professional is required to install the kit. The kit contains all the parts required for Mini Spray Irrigation for 1/4 acre of land. Match the nominal product specification and the supplier product code (1187) when selecting compatible equipment or replacement components.

Key Features

• Wall Thickness: 250 Microns
• Diameter: 20 mm
• Width of Spray: 3 meter (1.5 meter on either sides)
• Water Discharge: 75 liter per hour per meter of Mini Rain Hose length @ 0.8 Kg/cm2 pressure
• Laying Length: 15 meter

Technical Specifications

• Wall Thickness: 250 Microns
• Diameter: 20 mm
• Width of Spray: 3 meter (1.5 meter on either sides)
• Water Discharge: 75 liter per hour per meter of Mini Rain Hose length @ 0.8 Kg/cm2 pressure
• Laying Length: 15 meter
• Operating Pressure: 0.8 Kg/cm2
• Area of Coverage: 1000 Sqm - 1/4 acre
• Expected Life: 4 years
• Suitable Crop: Onion, Groundnut, Vegetables, Greens and Other Closely Spaced Crops
• Packing Box Size: 27 x 27 x 41 cm
• Number Of Box: 1
• Net Weight: 8.3 Kg
• Gross Weight: 9 Kg
• Brand / Vendor: KSNM
• Supplier product code: 1187

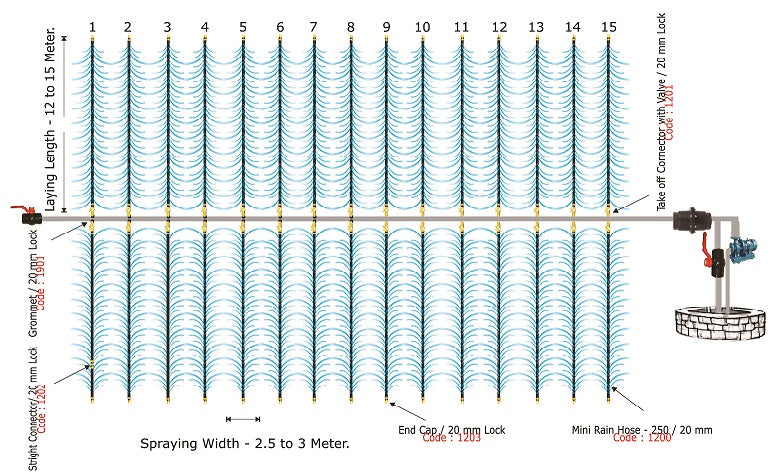

Supplier kit contents / component details (as published):

• Sno | Code | Particulars | Quantity | Rate | Amount
• 1 | 1200 | Mini Rain Hose - 250 / 20 mm | 400 Meter | 4.8 | 1920
• 2 | 1201 | Take off Connector with Valve / 20 mm Lock | 30 Nos | 18 | 540
• 3 | 1203 | End Cap / 20 mm Lock | 30 Nos | 4 | 120
• 4 | 1191 | Grommet / 20 mm | 30 Nos | 3 | 90
• 5 | 1202 | Straight Connector / 20 mm Lock | 10 Nos | 8 | 80
• 6 | 139 | Drill Bit / Stainless Steel / 20 mm | 1 Nos | 180 | 180
• Carbon Box Packing : 27 x 27 x 41 cm / 9 Kg | Total Amount | 3090

Applications

• Installing a small-farm rain-hose spray irrigation layout
• Irrigation of closely spaced crops where the supplier specifies suitability

Country of Origin: India
