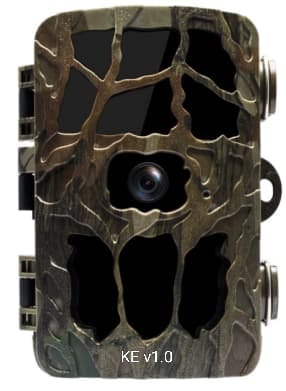

Katidhan- KE v1.0 Single-Lens Wildlife Camera Trap | 32MP 4K Trail Camera for Wild-life Monitoring.
Couldn't load pickup availability
KT v1.0(Kadu Eye Camera Trap)
About
Made in India, this is an advanced single-lens camera trap engineered for high-performance wildlife monitoring, offering exceptional image and video capture capabilities in both day and night conditions. Equipped with interpolated still image resolutions up to 32MP and video recording up to 4K (3840×2160 at 10fps), it ensures detailed documentation of animal activity. The single lens system features optimized optics for daytime and nighttime use, each providing a wide 110° field of view for comprehensive coverage. With less than 0.2-second trigger speed, PIR motion
detection, and 44 infrared LEDs for up to 38-meter night vision, this device delivers reliable, responsive performance in varied environments.
Technical Specifications
| Feature | Specification |
|
Still Image Size |
32MP (6480×4860), 20MP (5200×3900), 16MP (4608×3456), 12MP (4000×3000), 8MP (3264×2448), 5MP (2592×1944), 3MP (2048×1536), 1MP (1280×960) |
| Video Clip Resolutions |
(4K) 3840×2160/10fps, 2688×1520/20fps, 1920×1080/30fps, 1280×720/60fps, 1280×720/30fps, 720×480/30fps, 640×480/30fps, 320×240/30fps |
| File Format | JPG / AVI |
| Lens Angle | f=3.3mm; F/NO 2.0; FOV=105°; Auto IR filter |
|
LCD Display |
2.4” TFT 720×320 |
|
Memory |
External memory (TF card, Class 6 and above, up to 512GB) (not included) |
|
Number of IR Lamps |
40 PCS |
|
IR Flash Range |
20 meters |
|
Triggering Distance |
25 meters (below 77°F / 25°C at normal level) |
|
PIR Sensing Angle |
85° |
|
Triggering Time |
0.2 second |
|
Trigger Interval 5 seconds – |
60 minutes (programmable) |
|
Environment Protection |
High ingress IP 66 rating |
|
Built-in Microphone/Speaker |
Yes |
Installation Instructions
1. Location Selection:
○. Choose an area where animal activity is frequent.
2. Mounting the Device:
○. Mount the device on any kind of pole, tree, or on a tripod stand.
○. Use the Velcro strap or a tripod stand to mount it.
3. Activation:
○. Once installed and switched on, the device is in auto sensor mode and will start
clicking pictures and videos on activation.
Maintenance Guidelines
● Cleaning the lens:
○ Wipe the lens with a damp cloth regularly to remove dust and debris for efficient
charging.
● Inspecting the Device:
○ Periodically check the device for proper mounting on a regular basis; sometimes,
animals attack the mounting pole when deterred.
● Battery Replacement:
○ Replacement of the battery might be required every 2-3 months depending on the
frequency of the usage.
Warranty Information
● The product comes with a 1-year limited warranty covering manufacturing defects (P2P
Replacement in case of any defects)
● Warranty does not cover damages caused by improper use, physical damage, or exposure
to extreme conditions beyond the specified limits.
