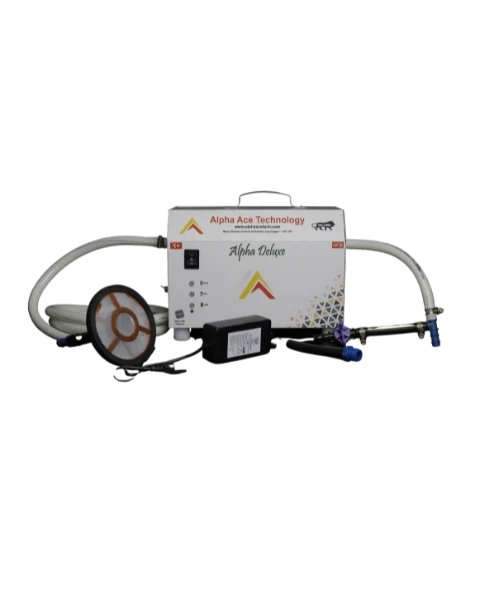

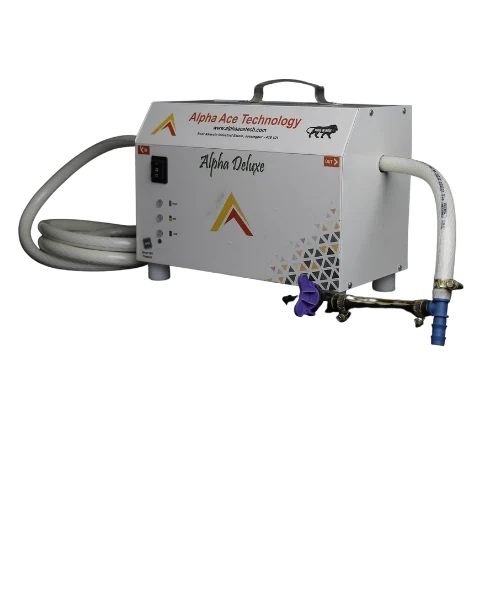

AlphaAce Deluxe Drip Injector Pump | 12 LPM Class, 800 LPH, 7 Bar

Introduction

The AlphaAce Deluxe Drip Injector is a higher-flow fertigation pump designed to introduce soluble fertilizer solutions into agricultural drip irrigation systems. The listed configuration is marketed as a 12 LPM-class injector.

Product Description

Built for fertilizer injection into drip lines, this Deluxe unit combines a hydraulic-diaphragm pump designation with a metal enclosure described as corrosion-resistant and powder-coated. BigHaat lists a maximum flow of 800 litres per hour and a discharge pressure of 7 bar for the Alpha Deluxe model. The product is intended to support even mixing and movement of dissolved nutrients through irrigation water in vegetable farms, orchards and horticultural operations. The retailer mentions both 6 LPM and 12 LPM product options, but the linked product page currently offers one saleable unit labelled 12 LPM. Its stated 800 LPH maximum does not mathematically equal 12 LPM, so both are presented as separate source claims.

Technical Specifications

• Brand: AlphaAce Technology
• Model: Alpha Deluxe
• Listed configuration: 12 LPM class
• Maximum discharge flow listed: 800 litres per hour
• Listed discharge pressure: 7 bar
• Pump type: Hydraulic diaphragm (retailer classification)
• Enclosure: Powder-coated metal body (seller description)
• Irrigation use: Fertilizer injection in drip irrigation
• Country of Origin: India

Applications

• High-flow fertigation in drip irrigation networks
• Dissolved fertilizer delivery for vegetable cultivation
• Orchard, horticultural and greenhouse nutrient application
• Fertilizer dosing across medium to large planted areas
